Epoxy zinc phosphate primer is a two-component anti-corrosion coating using polyamide-cured modified epoxy resin as the main film-forming substance and zinc phosphate as anti-corrosive pigment, featuring excellent corrosion resistance, good surface adaptability and sanding properties.
Suitable for anti-corrosion priming or intermediate coating on various steel structures, construction machinery, and equipment surfaces.
Zinc phosphate, as an anti-corrosive pigment, exhibits excellent rust prevention performance and can effectively prevent metal corrosion.
With superior anti-corrosion properties, it effectively blocks corrosive media from attacking metal substrates, extending the service life of metal surfaces.
Excellent surface adaptability enables strong adhesion to various metal surfaces with high compatibility. The coating is easy to sand, facilitating construction operations.
 |  |  |  |
 |  |  |  |
| performances | Epoxy Zinc Phosphate Primer | General Purpose Epoxy Primer | Light Metal-Specific Epoxy Primer |
| Adhesion | Excellent | Excellent | Excellent |
| Chemical resistance, h | Excellent | Excellent | Excellent |
| Salt spray resistance, h | 800 | 600 | 800 |
| Applicable environment | General steel structure, engineering machinery | General Steel Structure | Stainless steel, alloy, plating |
Epoxy Zinc Phosphate Primer is widely used as anti-corrosion primer or intermediate coating on various steel structures, machinery and equipment surfaces.

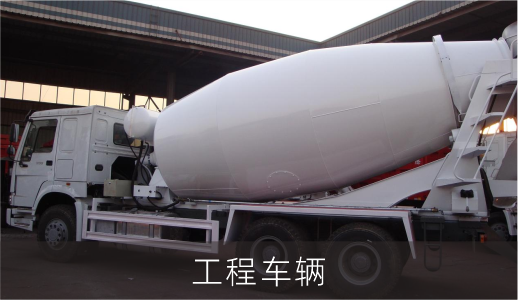

Including: petrochemical tanks, pipelines, valves, power transmission towers, substations, ship hulls, decks, cabins, steel bridges, buildings, doors and windows, mechanical vehicles, machine tools, etc.
 |  |  |
 |  |  |
| Color | gray |
| Solid % | 58-63 |
| Flashpoint | 23℃以上 |
| Coating film thickness | Dry film: 50-75 μm/coat Wet film: 91-136 μm/coat |
Theoretical Coating Rate | 0.130 kg/m2/50 μm Actual spreading rate depends on various factors including surface preparation, ambient conditions, and application methods. |

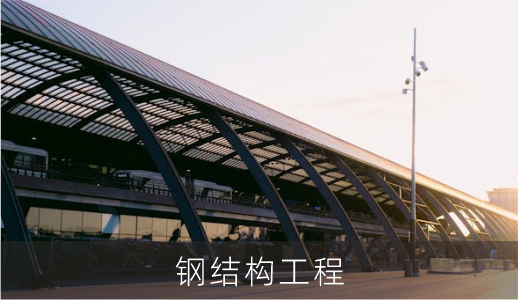

Suitable for steel structures that are exposed to harsh environments for long periods of time, such as bridges, buildings, and waterfront facilities.

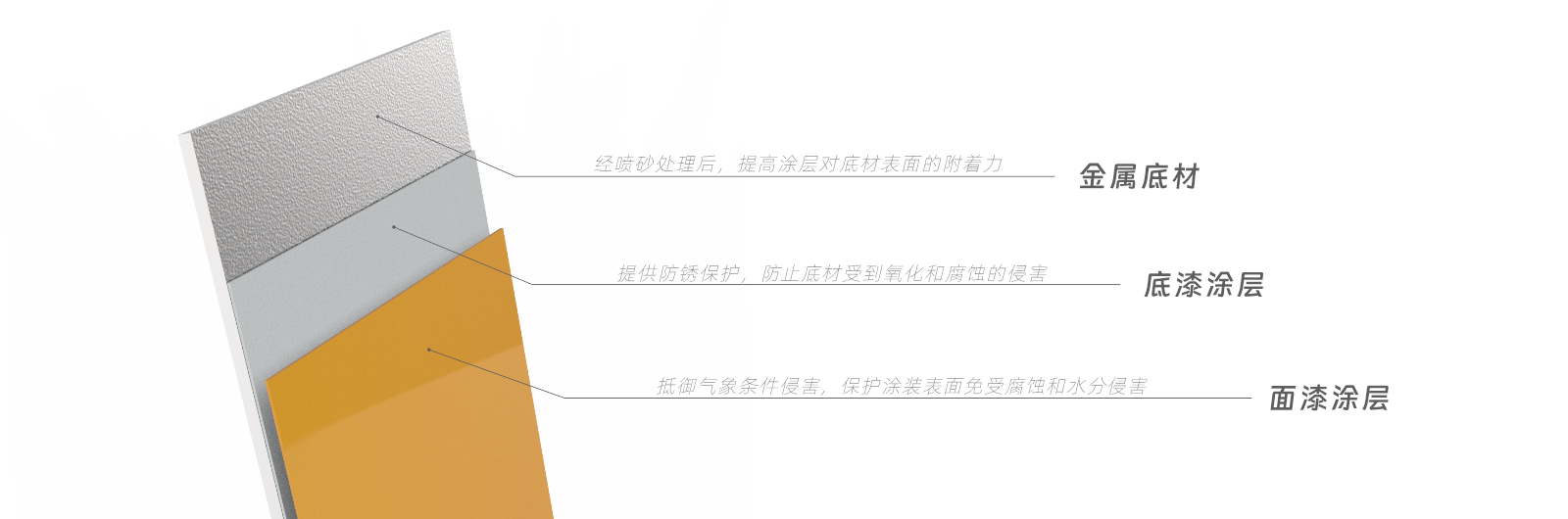

Primer: Epoxy Zinc Phosphate Primer, Top Coat: Fluorocarbon Top Coat
Suitable for steel structures used in general environment, such as many kinds of machinery, fences, municipal engineering, etc.
Primer: Epoxy zinc phosphate primer, Topcoat: Acrylic polyurethane topcoat
Application Methods：
Temperature of application: 5℃～40
Mixing: Stir thoroughly using power tools or manual tools to ensure even mixing.
Mixing Ratio: Base/ Hardener = 5/1 (by weight)
Mixing use period:
| 5℃ | 20℃ | 30℃ |
| 16hrs | 8hrs | 6hrs |
Application Methods: Airless spraying, air spraying, brushing, or rolling (specialized).
| Application Method | Nozzle Size | Outlet Pressure | Thinning Ratio (by Weight) |
| Airless Spraying | 0.38mm-0.48mm | 10-15Mpa | 10-20% |
| Air Spraying | ---- | ---- | 5-15% |
| Brushing/Rolling | ---- | ---- | 0-10% |
| Thinner | Epoxy Thinner | ||
Drying Time & Recoating Interval
| Temperature | 10℃ | 20℃ | 30℃ |
| Touch Dry | 3hrs | 2hrs | 2hrs |
Semi-hard drying | 16hrs | 12hrs | 8hrs |
| Minimum Recoat Interval | 24hrs | 16hrs | 12hrs |
Maximum Recoat Interval | 7days | 7days | 7days |
Surface Preparation
Steel surfaces to be coated must undergo complete removal of oil, oxide scale, rust, and old coatings through blasting or shot peening to achieve Swedish standard Sa2.5 with a surface profile of 30–70μm. Manual cleaning methods may also be used to achieve Swedish standard St3 with a surface profile of 30–70μm.
Safety Measures
1. Avoid contact with skin and eyes.
2. If paint comes into contact with skin, wash with warm water or an appropriate cleaning agent. If paint comes into contact with eyes, rinse thoroughly with water and seek medical attention immediately.
3. Ensure good ventilation.
4.The paint contains flammable substances. Keep away from sparks and prohibit smoking in the vicinity.
5. Comply with all health and safety regulations on-site.
Storage
Store in a dry and cool environment, away from heat sources and open flames. Keep the container tightly sealed.
Shelf life: 12 months from the date of production (at 25°C).
Attention
Since the conditions of product use are beyond our control, the information provided here does not constitute a warranty. We are only responsible for the selection of products. Due to the continuous development of our products and production processes, the content of this manual may be updated at any time. All information herein is subject to our confirmation. Before using the product, please ensure that you have the latest version of the manual.
