Epoxy glass flake anti-corrosion paint is a high-build, two-component epoxy coating reinforced with glass flakes.
It is used on surfaces exposed to severe corrosive environments and frequent abrasion, such as splash zones, breakwaters, and decks. It is also suitable for use as part of a coating system for the interior walls of crude oil storage tanks and chemical containers.
The glass flakes are densely arranged within the coating film, forming a compact and continuous barrier layer that effectively blocks contact between corrosive media and the substrate. It provides excellent resistance to corrosion from acids, alkalis, salts, seawater, atmospheric conditions, and various oils.
The glass flakes possess high hardness and strength, enhancing the mechanical properties of the coating film. This improves its wear resistance, impact resistance, and extends its service life.
The epoxy resin exhibits excellent adhesion, allowing it to firmly bond with a variety of substrates.
 |  |  |  |
 |  |  |  |
Petrochemical Industry: Storage tanks, pipelines, valves, instruments, and meters.Power Industry: Power plant transmission lines, substations, cables, etc.
Metallurgical Industry: Steel plants, electroplating plants, pickling tanks, etc.Marine Industry: Ship hulls (interior and exterior), ballast tanks, oil tanks, etc.

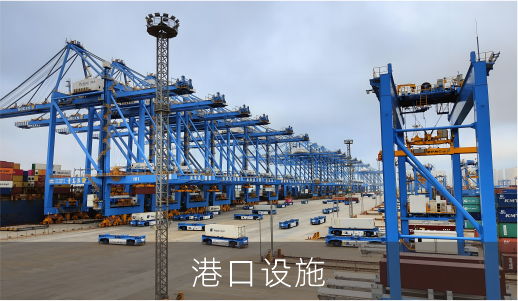

Bridges: Steel box girders, bridge piers, anti-collision railings, etc.Others: Wastewater treatment facilities, seawater aquaculture facilities, etc.
 |  |  |
 |  |  |
| Color | Gray and Other Colors |
| Volume Solid% | 65-68% |
| Flashpoint | Above27℃ |
| Coating film thickness | Dry film:125-500µm/coat Wet film: 250-1000μm/coat |
Theoretical Coating Rate | 0.283kg/m2/100µm Actual spreading rate is influenced by various factors, including surface preparation, environmental conditions, and application methods. |
The specific coating system should be selected based on actual conditions, such as substrate material, environmental conditions, and usage requirements.
We recommend consulting our sales team for professional advice.
Primers: Epoxy Primer, Epoxy Zinc Phosphate Primer,Primers: Epoxy Primer, Epoxy Zinc Phosphate Primer,
Intermediate Coats: Epoxy Mica Iron Oxide Intermediate Coat, etc.
Construction temperature：5℃～40℃
Mixing: Use power tools or hand tools to mix well.
Mixing ratio: main agent/curing agent = 5/1 (quality ratio)
Mixed use period: airless spraying, air spraying, brushing, rolling (for special use)
| Construction method | Nozzle Size | Outlet Pressure | Dilution ratio (mass ratio) |
| Airless Spray | 0.43mm-0.53mm | 10-15Mpa | 10-15% |
| Air Spray | ---- | ---- | 15-27% |
| Brushing, Rolling | ---- | ---- | 10-15% |
| Thinner: | Epoxy Thinner | ||
Drying Time & Coating Interval
| Temperature | 5℃ | 20℃ | 30℃ |
| Dry Fingers | 4hrs | 1hrs | 30min |
Semi-hard drying | 48hrs | 16hrs | 12hrs |
| Minimum coating interval | 48hrs | 16hrs | 12hrs |
Maximum coating interval | 9days | 7days | 7days |
Applicable substrate: bare steel
Surface Treatment
The steel surface to be coated must be thoroughly cleaned of oil, scale, rust, and old coatings. This can be achieved through shot blasting or sandblasting methods to meet the Swedish standard Sa2.5, with a surface roughness of 30-70 μm. Alternatively, manual cleaning methods can be used to meet the Swedish standard St3, with a surface roughness of 30-70 μm.
security measure
1、 Avoid contact with skin and eyes。
2、When paint comes into contact with skin, wash with warm water or appropriate detergent. If paint comes into contact with eyes, flush with plenty of water and seek medical attention immediately.
3、Ensure good ventilation.
4、The paint contains combustible substances, please keep away from sparks and prohibit smoking in the immediate area.
5、All health and safety requirements will be observed on site.
Storage
Store in a dry and cool environment, away from heat and ignition sources. The drum must be kept closed.
Storage period: 12 months from date of manufacture (25°C)
Attention
Since the conditions of use of the products are beyond our control, the information contained herein is provided without warranty, i.e., the buyer is liable only for the selection of the products. Due to the continuous development of our products and production processes, the contents of this manual are subject to change at any time, and all information herein is subject to our confirmation. Please make sure that you have the latest version of this manual before using the product.
