Product Features
It exhibits excellent temperature resistance, making it suitable for long-term use in environments ranging from -50°C to 200°C.
Epoxy Phenolic Anti-Corrosion Paint offers exceptional chemical resistance, corrosion resistance, and weather resistance, effectively protecting metal surfaces from the erosion of various corrosive media.
Epoxy Phenolic Anti-Corrosion Paint demonstrates excellent resistance to crude oil and water, making it highly durable against the corrosive effects of media such as crude oil and seawater.
Product Comparison
| Performance | Epoxy Phenolic Anti-Corrosion Paint | Epoxy Glass Flake Anti-Corrosion Paint | Acrylic Polyurethane Topcoat |
Heat Resistance
| 300 | 150 | Room Temperature
|
Acid and Alkali Resistance
| Excellent
| Excellent | Fair
|
Abrasion and Impact Resistance
| Good | Excellent | Good |
Application Environment
| Indoor, chemical, high-temperature environments
| Indoor, chemical environments | Outdoor, sun-exposed environments
|
Application Scope
Epoxy Phenolic Anti-Corrosion Paint is suitable for protecting metal surfaces in the following environments

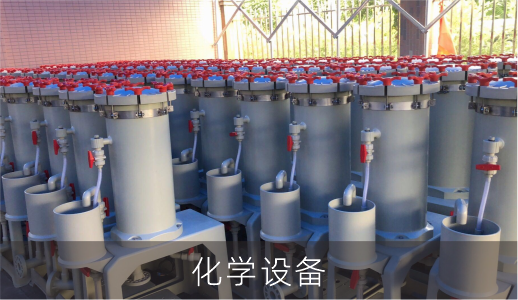

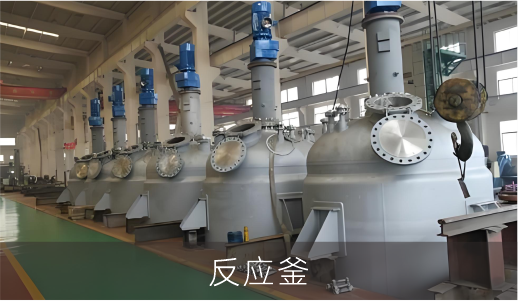

Chemical Environments: Petrochemical plants, acid and alkali factories, electroplating facilities, and similar settings.

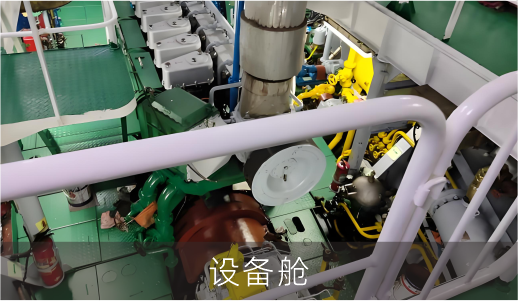

Marine Environments: Ships, docks, offshore platforms, and similar settings.
Atmospheric Environments: Industrial plants, bridges, power transmission lines, and similar settings.
High-Temperature Environments: High-temperature equipment in industries such as metallurgy, power generation, and chemical processing.
Technical Parameters
Color
| Gray and White |
| Volume Solid | 68% |
Flashpoint
| Above30℃ |
| Coating film thickness | Dry film:100-200μm/coat; Wet film:147-294μm/coat |
| Theoretical Coating Rate | 0.204 kg/m²/100 μm Depends on surface preparation, environmental conditions, application methods, and other factors. |
Coating System
Epoxy Phenolic Anti-Corrosion Paint can be used in a variety of environments as part of a comprehensive coating system.
It can be used in conjunction with Epoxy Phenolic Primers, Epoxy Zinc Phosphate Primers, and Epoxy Zinc-Rich Primers.
Application Method
Application Temperature: 5°C to 40°C
Mixing: Use a power tool or manual tool to thoroughly mix the components until uniform
Mixing Ratio: Base/ Hardener = 5/1 (by weight)
| Application Method | Nozzle Size | Outlet Pressure
| Thinning Ratio |
| Airless Spray | 0.43mm-0.53mm | 10-15Mpa | 0-5% |
| Air Spray | ---- | ---- | 11-22% |
| Brush/Roller | ---- | ---- | 5-10% |
Drying & Curing Times
Temperature
| 5℃ | 20℃ | 30℃ |
| Touch Dry | 2hrs | 1.5hrs | 0.5hrs |
Semi-Hard Dry
| 10hrs | 4hrs | 1hrs |
| Minimum Recoat Interval | 36hrs | 16hrs | 16hrs |
| Maximum Recoat Interval | 14days | 7days | 7days |
Surface Treatment：
The steel surface to be coated must be thoroughly cleaned of oil, scale, rust, and old coatings. This can be achieved through shot blasting or sandblasting methods, reaching the Swedish Standard Sa 2.5 level of cleanliness, with a surface roughness of 30–70 μm. Alternatively, manual cleaning methods can be used to achieve the Swedish Standard St 3 level of cleanliness, with a surface roughness of 30–70 μm.
Safety Measures：
1、Avoid contact with skin and eyes.
2、If paint comes into contact with skin, wash with warm water or an appropriate cleaning agent. If paint comes into contact with eyes, rinse thoroughly with water and seek medical attention immediately.
3、Ensure adequate ventilation.
4、The paint contains flammable substances. Keep away from sparks and prohibit smoking in the vicinity.
5、Comply with all health and safety regulations on-site.
Storage：
Store in a dry and cool environment, away from heat sources and open flames. Keep the container tightly sealed.
Shelf life: 12 months from the date of production (at 25°C).
Please note：
Since the conditions of product use are beyond our control, the information provided here does not constitute a warranty. We are only responsible for the selection of products. Due to the continuous development of our products and production processes, the content of this manual may be updated at any time. All information herein is subject to our confirmation. Before using the product, please ensure that you have the latest version of the manual.
