Product Features
It is suitable for metal surface protection in high temperature environments, as it can withstand temperatures from 200 to 800 degrees Celsius.
Resistant to hot and cold cycles, anti-oxidation, effectively prolonging the service life.
It can be customized to be free of heavy metals such as lead, cadmium, mercury, etc., which meets the environmental protection standard.
Easy to apply: can be applied by brush, roller or spray.
Scope of Application

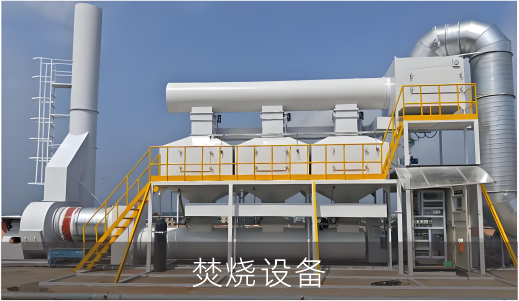

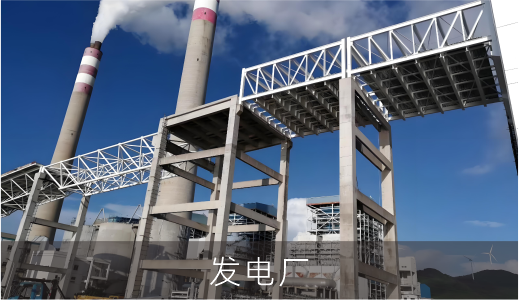

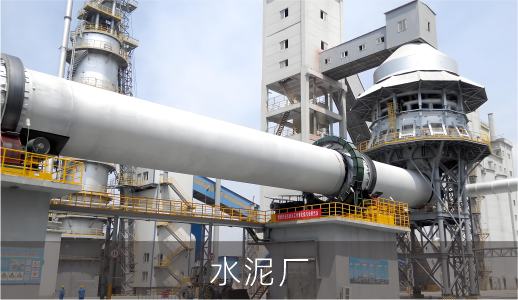

Widely used in 200 ~ 800 ℃ below the work of the parts, especially for metallurgy, aviation, power and other high-temperature part of the equipment, anti-corrosion,

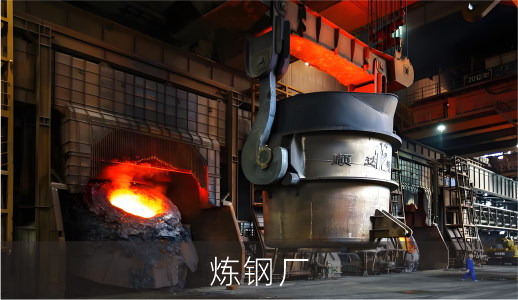

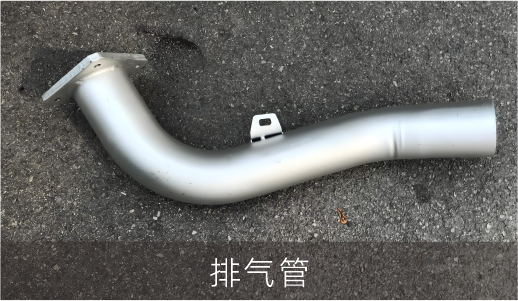

such as steel plant blast furnace, hot air furnace outer wall, high-temperature chimneys, flue, high-temperature hot gas pipe, furnace, heat exchanger and so on.
The paint is characterized by room temperature drying, high temperature resistance and excellent mechanical properties.
Technical Parameters
| Color | Gray, Iron Red |
| Luster | No light |
| Viscosity (25±1℃, Coating-4,S) | 50~60 |
| Drying time (23±2°C) | Surface drying≤1h, solid drying≤24h
Full curing:210℃ baking for 40min. |
| Volume Solid | 44% |
| Theoretical Coating Volume | 140g/ m2 |
| Density | 1.30kg/L
|
| Flexibility | 1mm |
Adhesion | Level 1 |
| Impact strength | 50kg·cm |
| Heat resistance (200~800℃, 4h) | Paint film integrity |
| Deposit period | 12 months |
Coating Matching
It can be used in combination with organic silicon high temperature resistant primer or as a topcoat for high temperature metal surfaces.
Construction Method
Mixing ratio: single can
Cooking time: Stir well before use.
Applicable Period: Unlimited
Thinner: Specialized Thinner
Construction method: High-pressure airless spraying, airborne spraying, hand brushing, roller coating.
Tool cleaning: Specialized thinner
Film Thickness: Wet Film 90um, Dry Film 40um
Construction Conditions
Ambient Temperature：2℃～40℃
Relative Humidity：25%～75%
| Construction Method | Nozzle Size | Outlet Pressure | Dilution ratio |
| Airless Spray | 0.4-0.5mm | 12-15MPa | 10-15% |
| Air Spray | 2.0-2.5mm | 0.3-0.4MPa | 10-20% |
| Brush & Roll Coating | ---- | ---- | 10-20% |
Drying Time & Coating Interval
| Temperature of substrate | 5℃ | 20℃ | 30℃ |
| shortest | 24h | 16h | 8h |
| longest | Unlimited |
Surface treatment:
The surface of the steel to be coated must be thoroughly cleaned of oil, oxidized skin, rust, old coating, etc. Shot blasting or sand blasting method can be adopted to reach the Swedish rust removal standard Sa2.5 grade, with a roughness of 30-70 μm; or hand-operated rust removal method can also be adopted to reach the Swedish rust removal standard St3 grade, with a roughness of 30-70 μm.
Security measures:
1. Avoid contact with skin and eyes.
2. When paint comes into contact with skin, wash with warm water or appropriate detergent. If paint comes into contact with eyes, flush with plenty of water and seek medical attention immediately.
3. Ensure good ventilation.
4、Paint contains flammable substances, please keep away from sparks and prohibit smoking in the adjacent area.
5. Observe all health and safety regulations on site.
Storage:
Store in a dry and cool environment, away from heat and ignition sources. The drum must be kept closed.
Storage period: 12 months from date of manufacture (at 25°C).
Please note:
Since the conditions of use of the products are beyond our control, the information herein is provided without warranty, i.e., we shall be liable to the buyer only in respect of the selection of the products. Due to the continuous development of our products and production processes, the contents of this manual are subject to change at any time, and all information herein is subject to our confirmation. Please make sure you have the latest version of this manual before using the product.
